Angle Bracket 2.5mm HEAVY DUTY Galvanised Steel REINFORCED Corner Brace

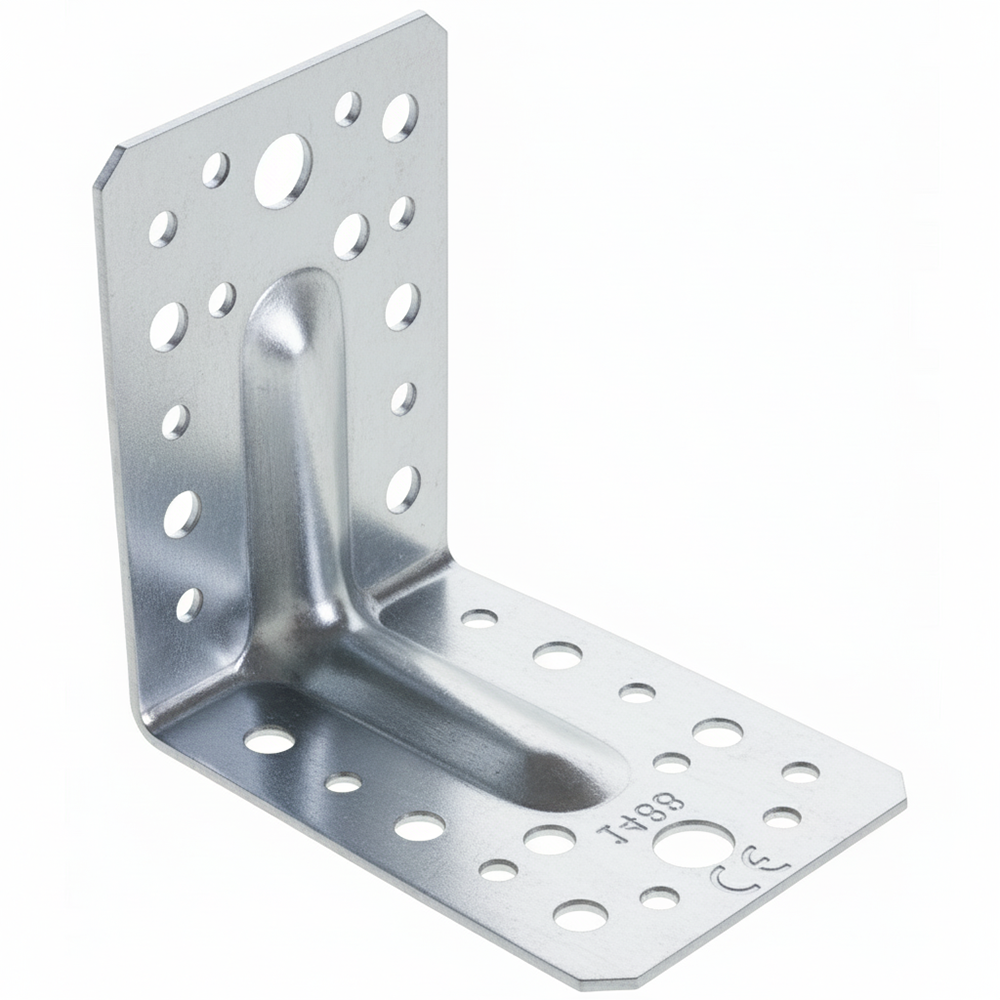

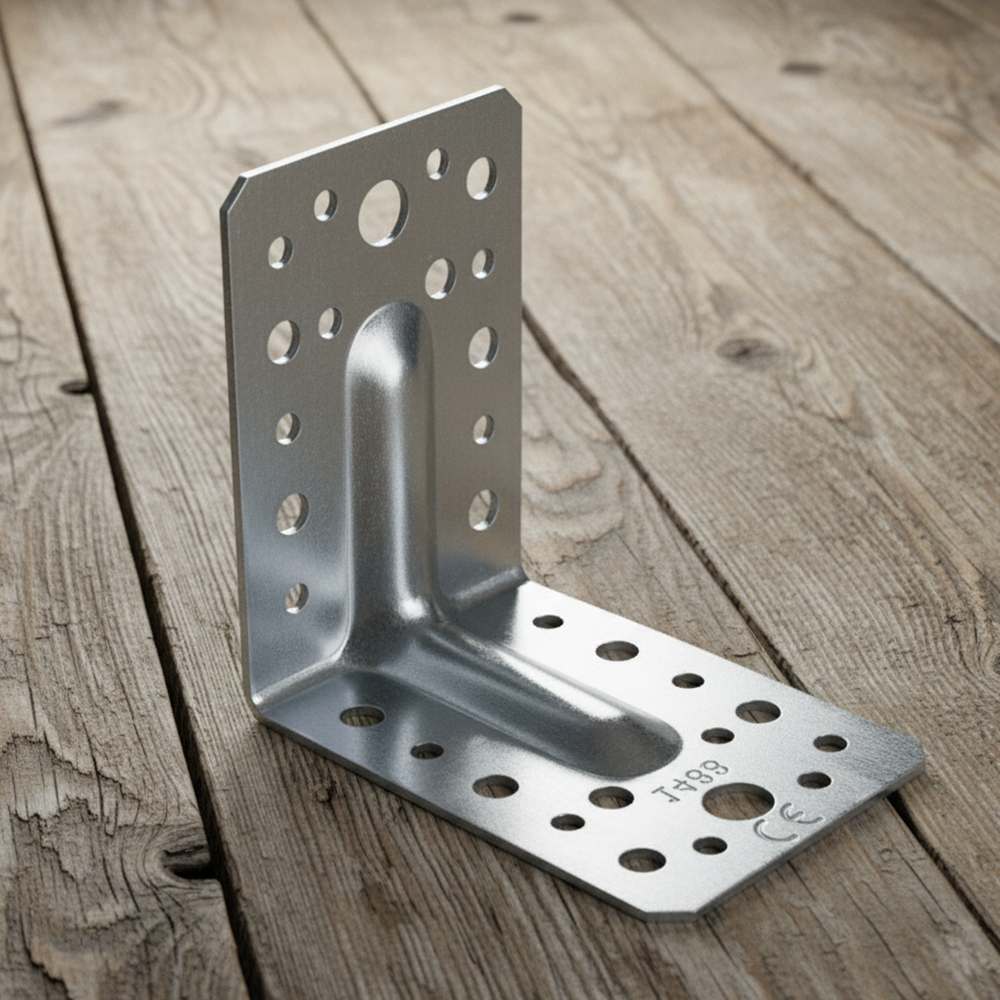

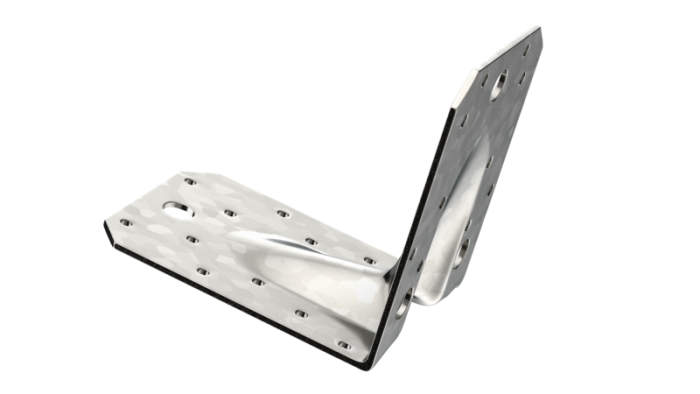

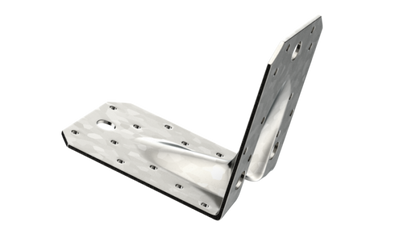

ULTRA-STRENGTH 2.5MM HEAVY DUTY GALVANISED STRUCTURAL ANGLE BRACKET

Secure your structures with the professional-grade Heavy Duty Angle Brackets. Engineered for uncompromising stability, these connectors are the definitive choice for all critical 90° joints, offering substantially higher load capacity than standard hardware.

CORE TECHNICAL DETAILS & STRUCTURAL BENEFITS

• 2.5mm Heavy Duty Gauge: Constructed from thick, robust mild steel, guaranteeing superior rigidity and strength for heavy loads, effectively mitigating flex and resisting deformation in high-stress applications.

• Certified Structural Compliance: Fully approved for construction, carrying the CE Mark and verified by ETA (European Technical Assessment) 22/0631 for guaranteed performance and load data.

• Z275 Corrosion Resistance: Protected by DX51D + Z275 galvanised coating for robust resistance against rust and corrosion, ensuring maximum service life in demanding outdoor environments.

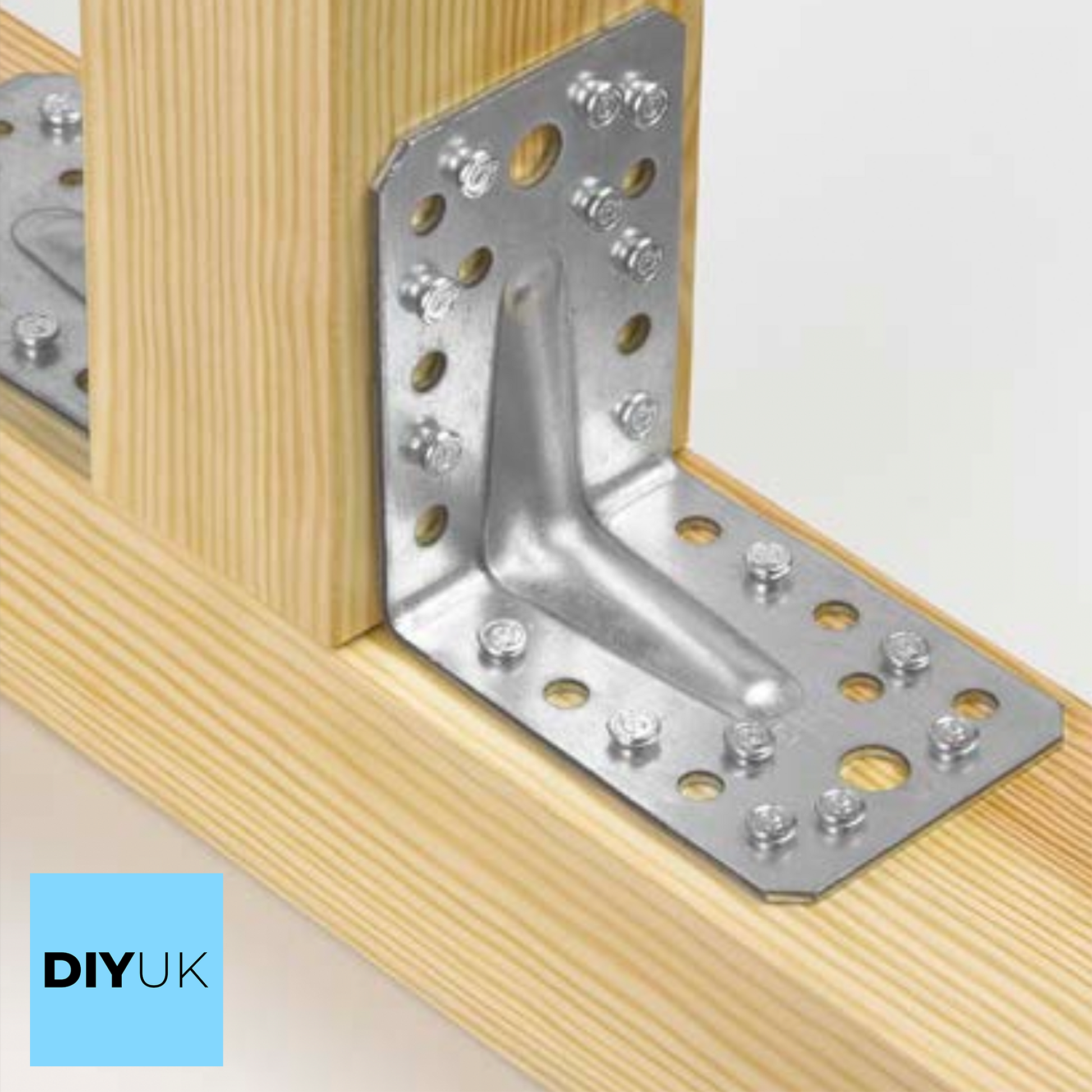

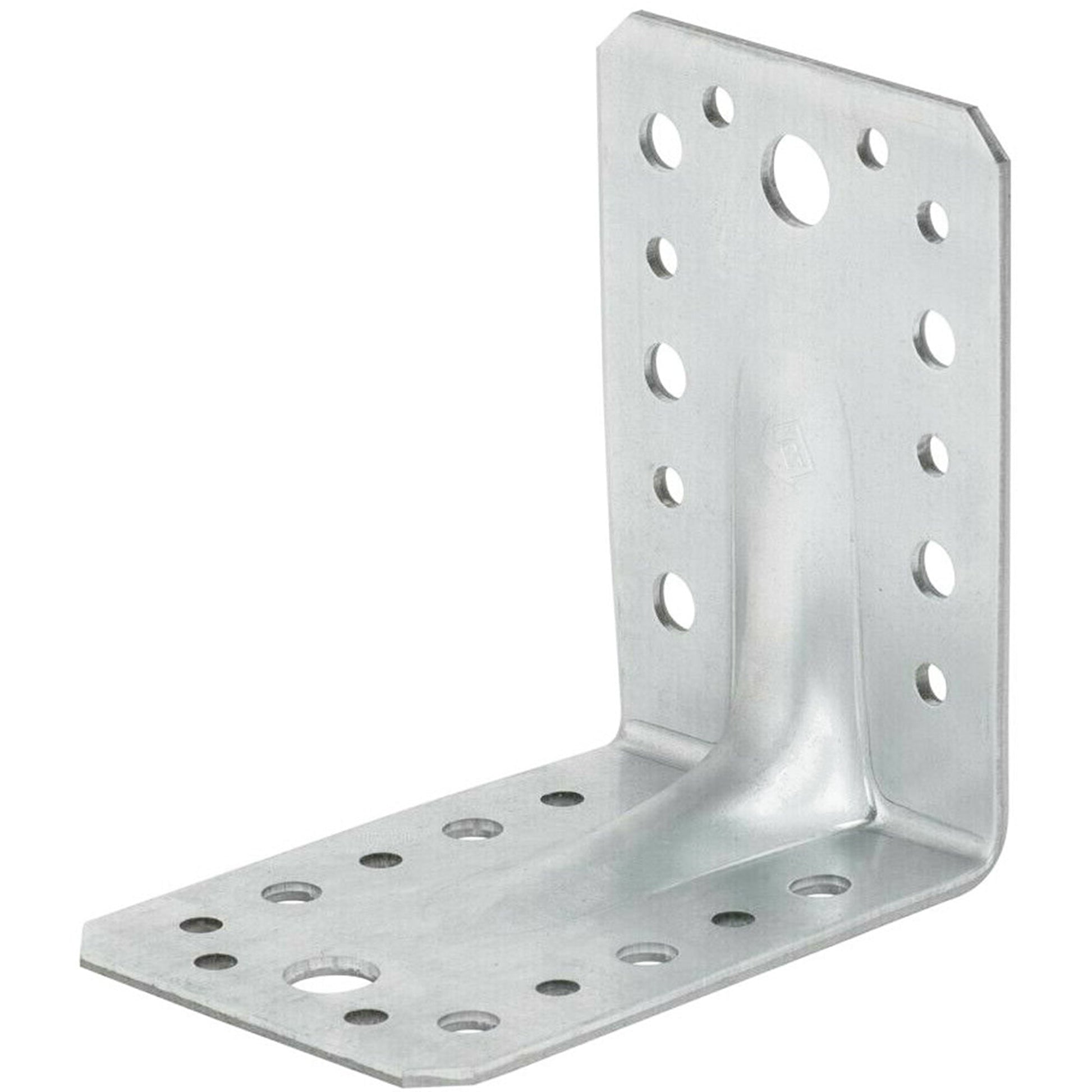

• Reinforced 90° Design: Features a stiffening rib or reinforced corner for added rigidity, maximising the bracket's ability to resist shear forces and rotational movement, crucial for structural framework.

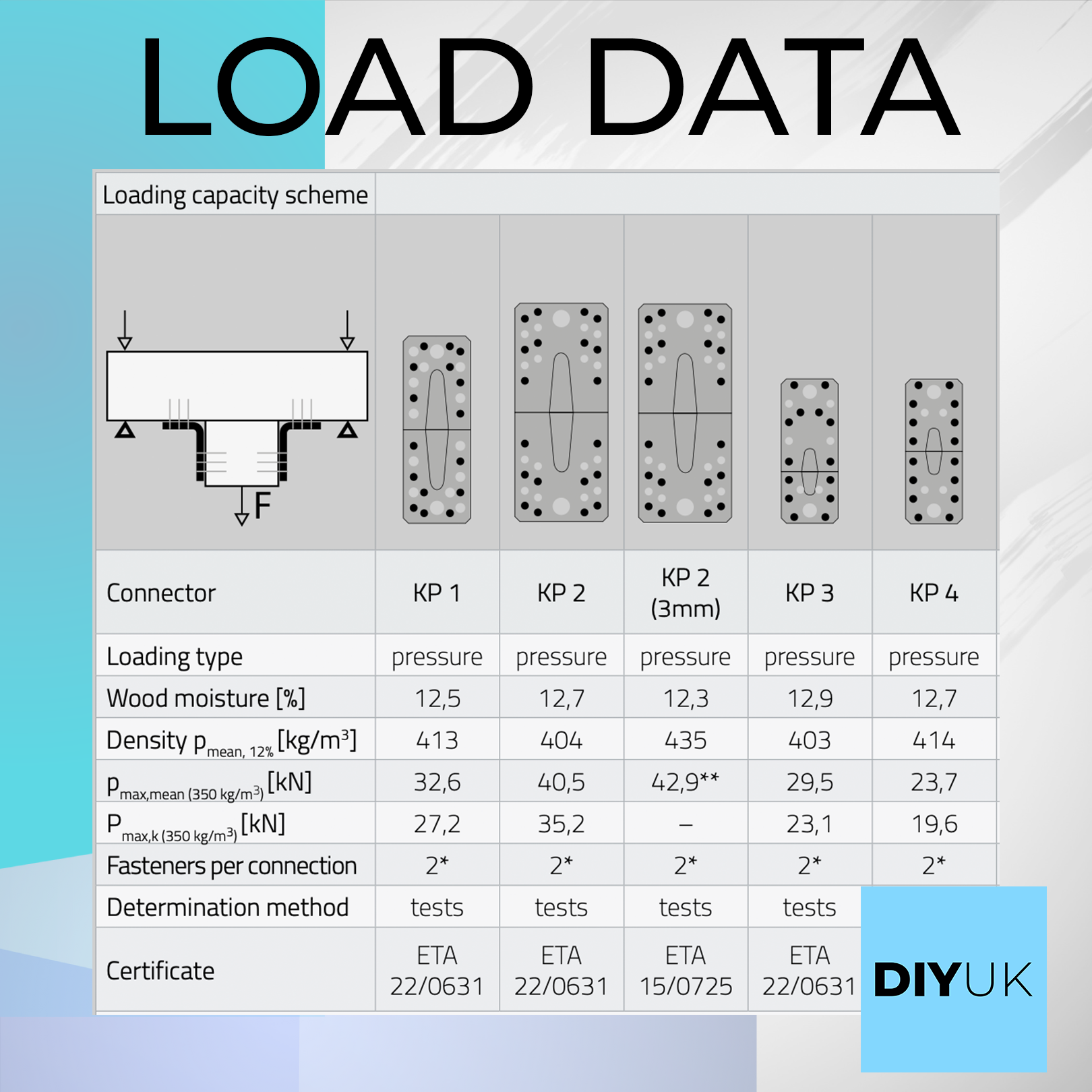

CERTIFIED LOAD CAPACITY (Based on Two Connectors Per Joint)

Maximum mean resistance values for a timber density of 350 kg/m3 (ETA 22/0631 certification data):

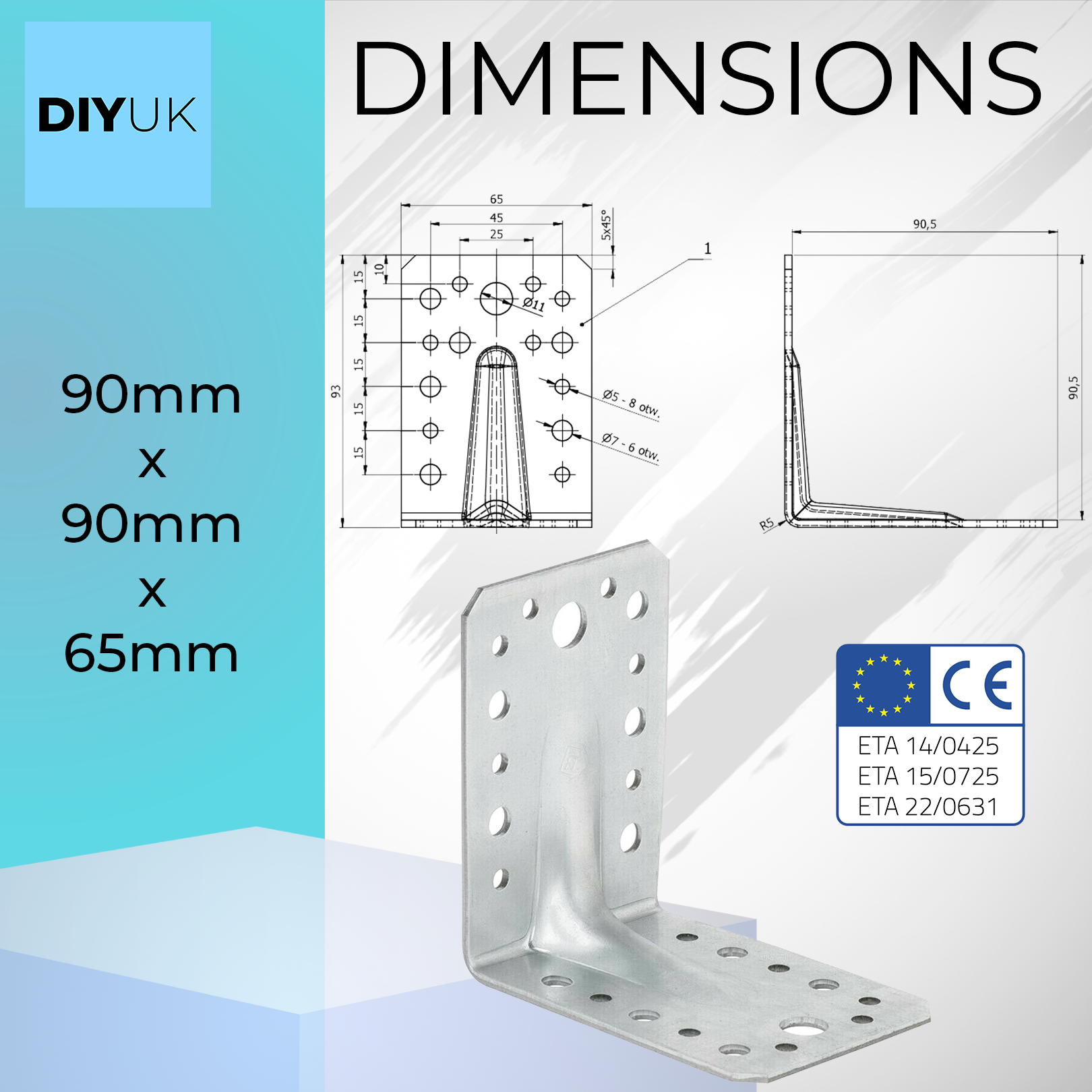

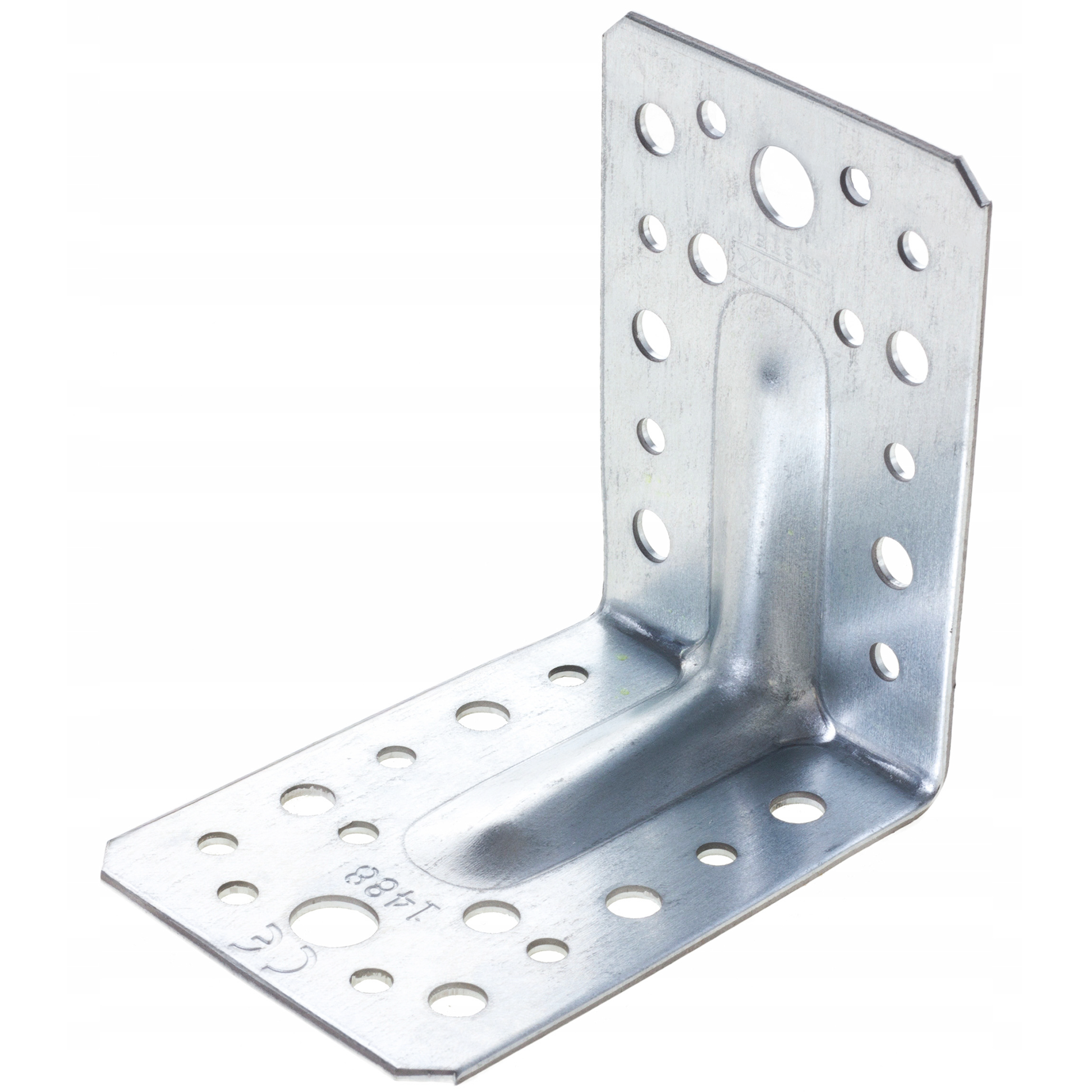

• KP1 (90x90x65mm): = 27.2 kN

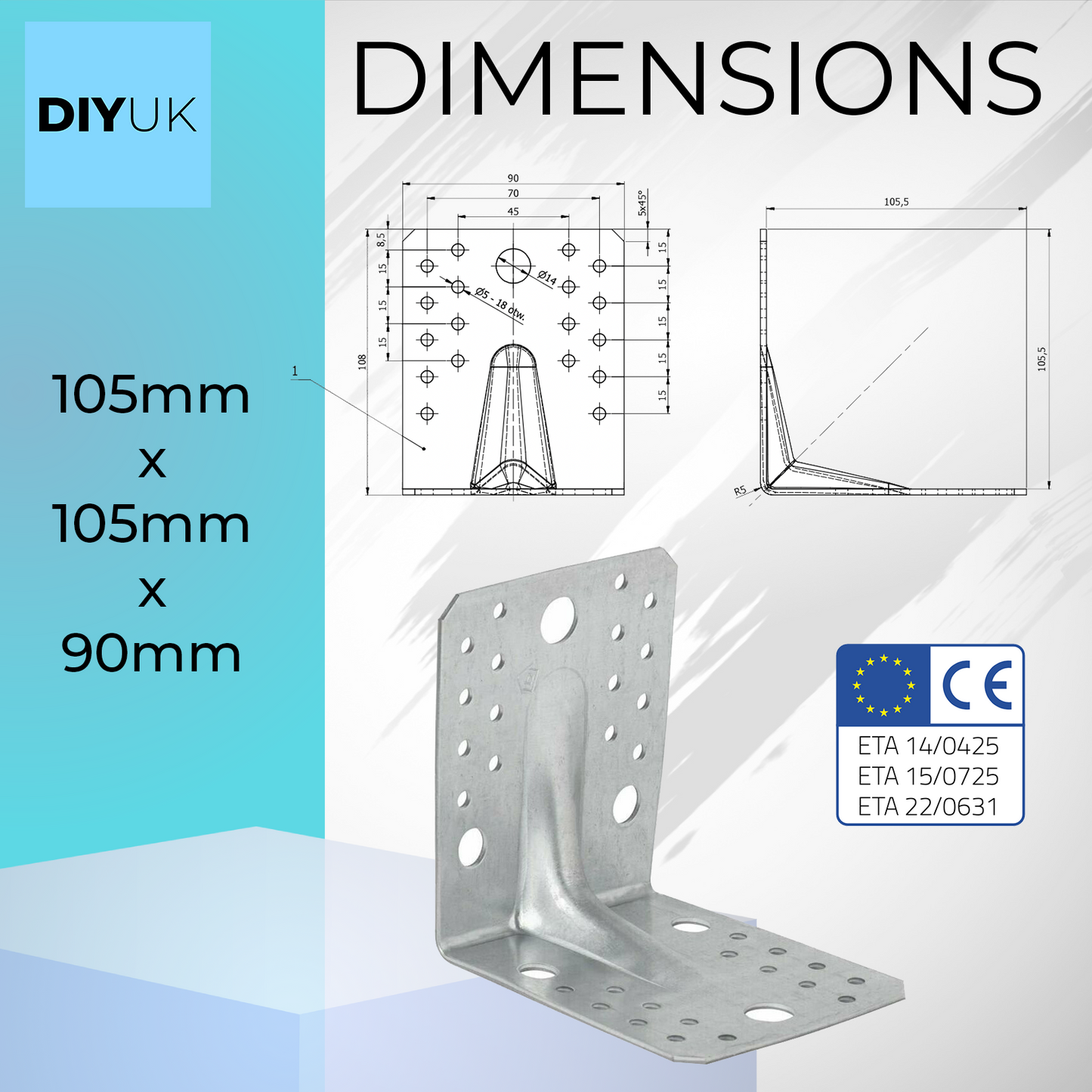

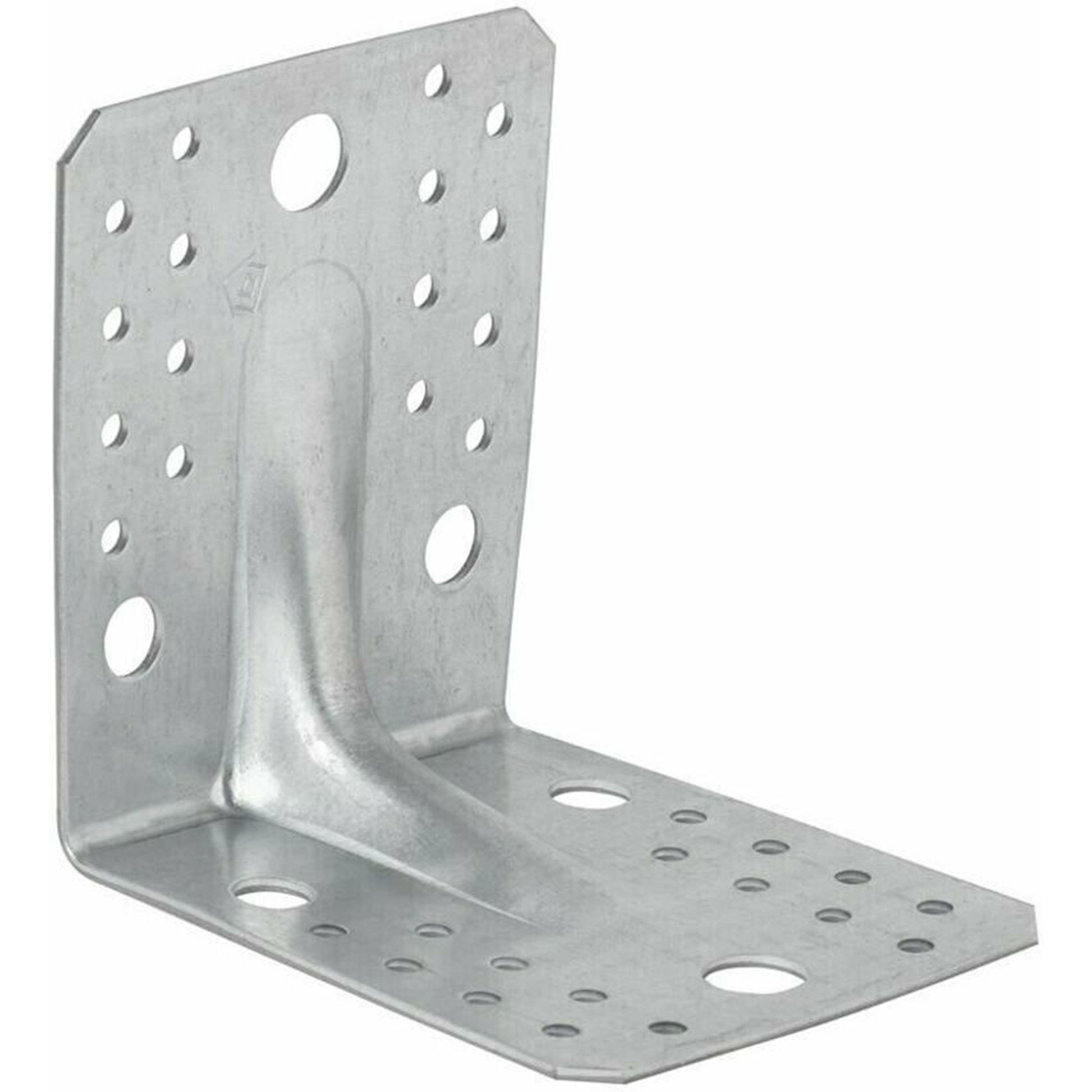

• KP2 (105x105x90mm): = 35.2 kN

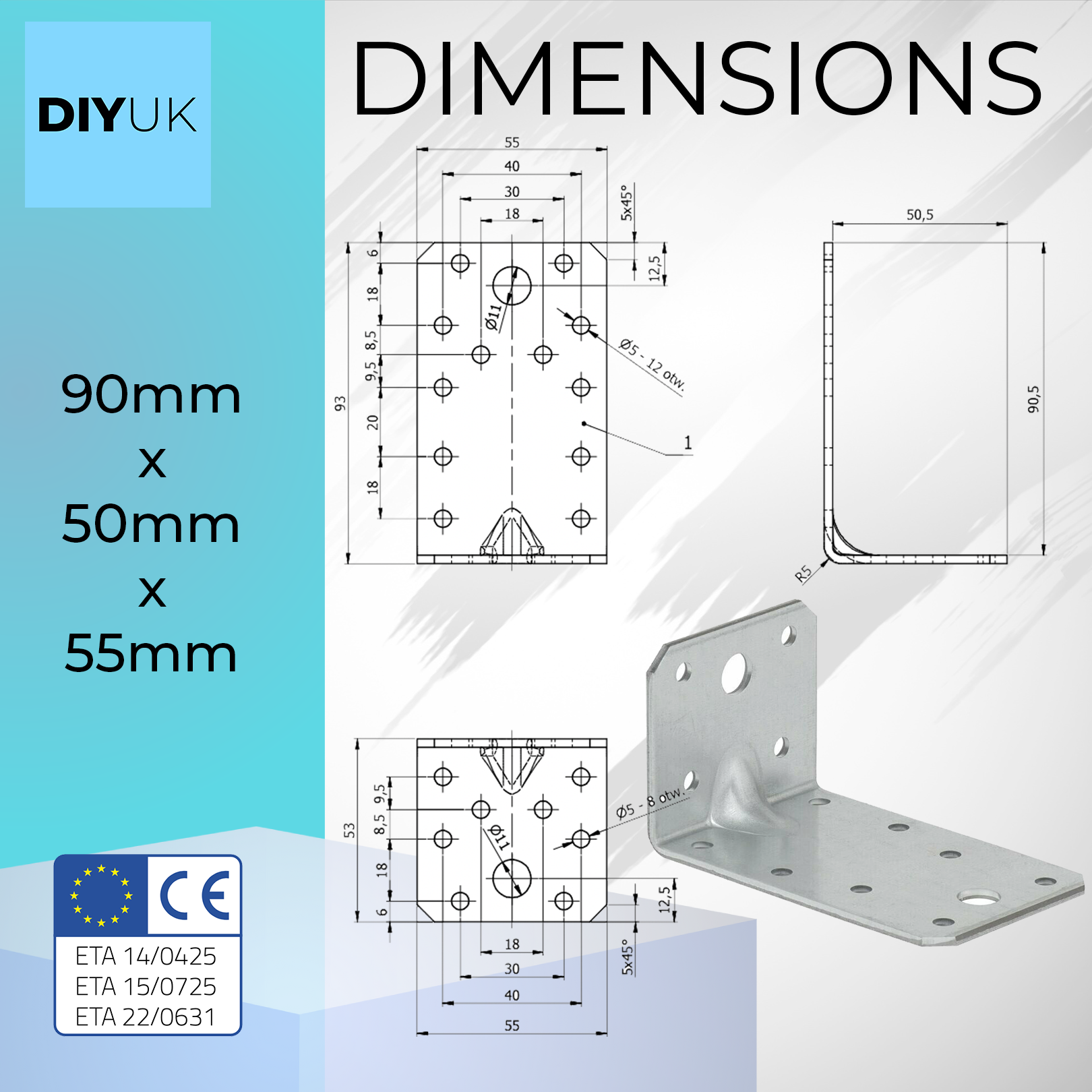

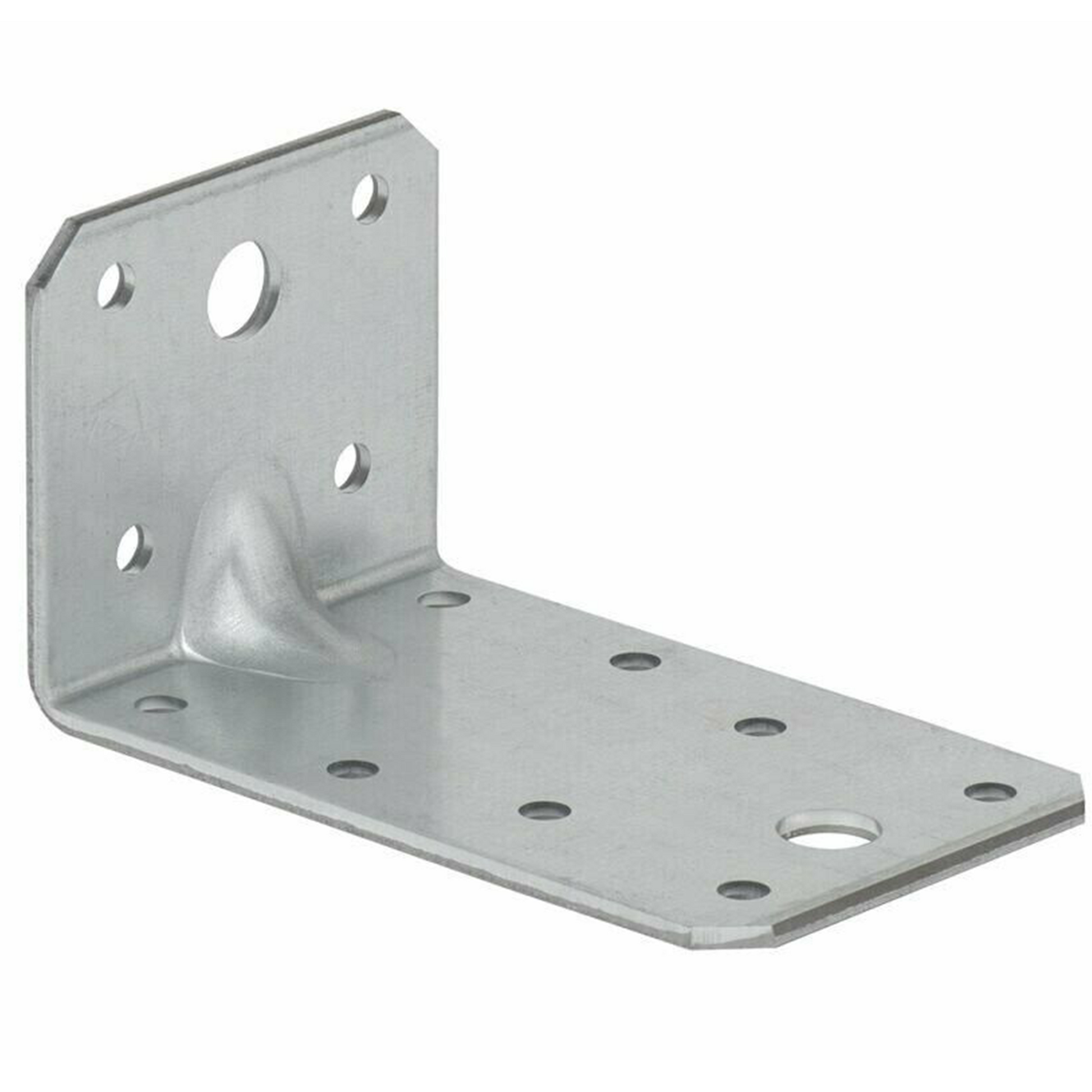

• KP3 (90x50x55mm): = 23.1 kN

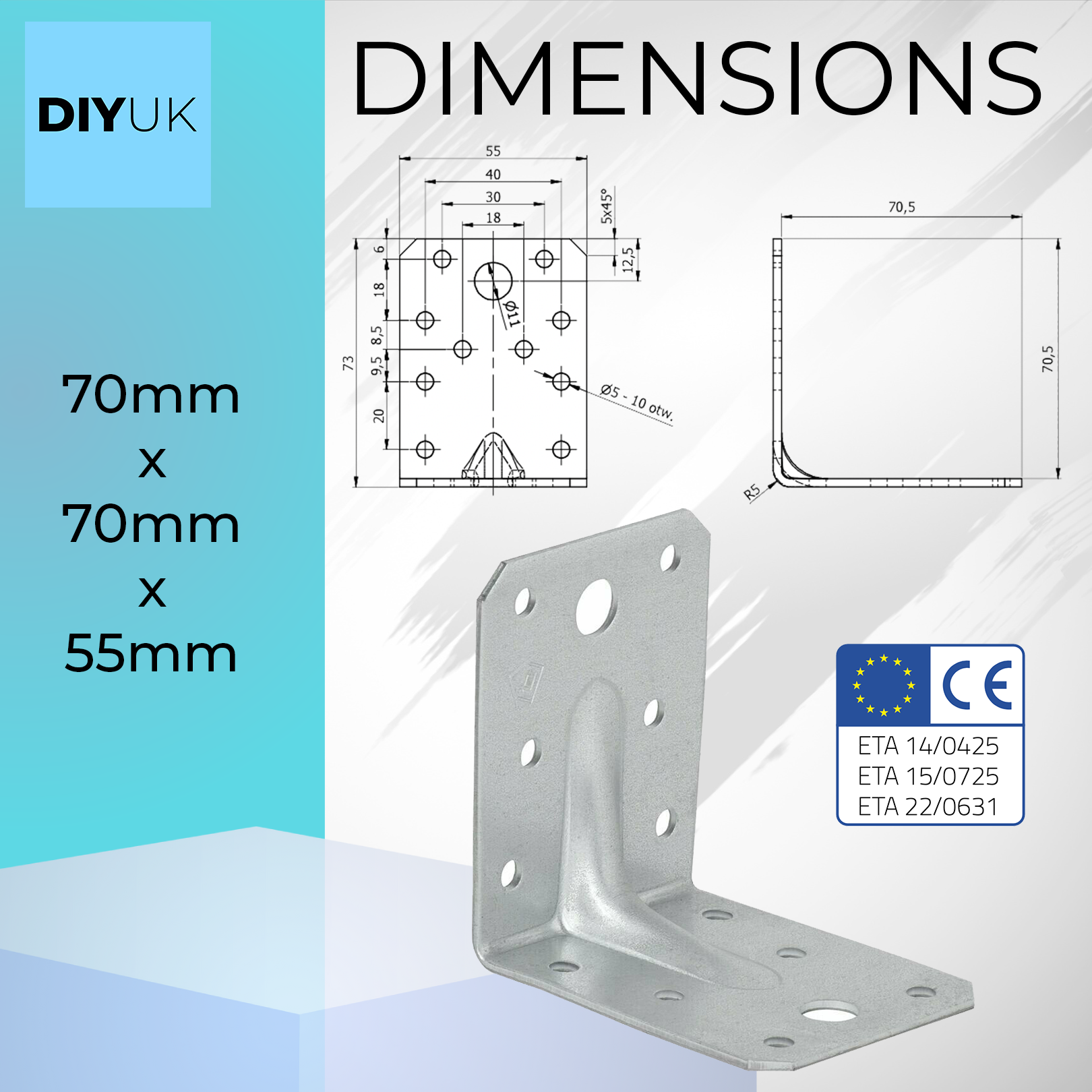

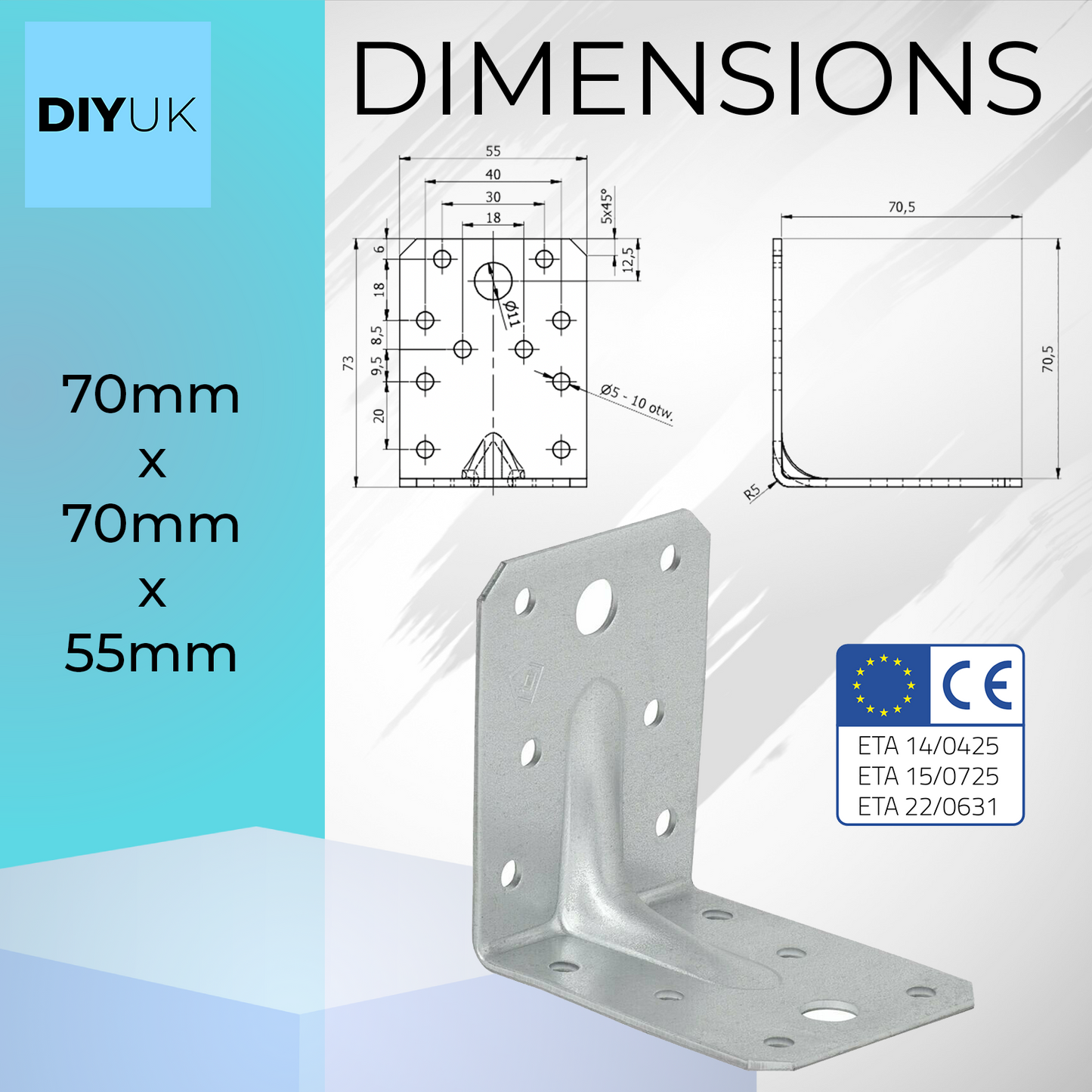

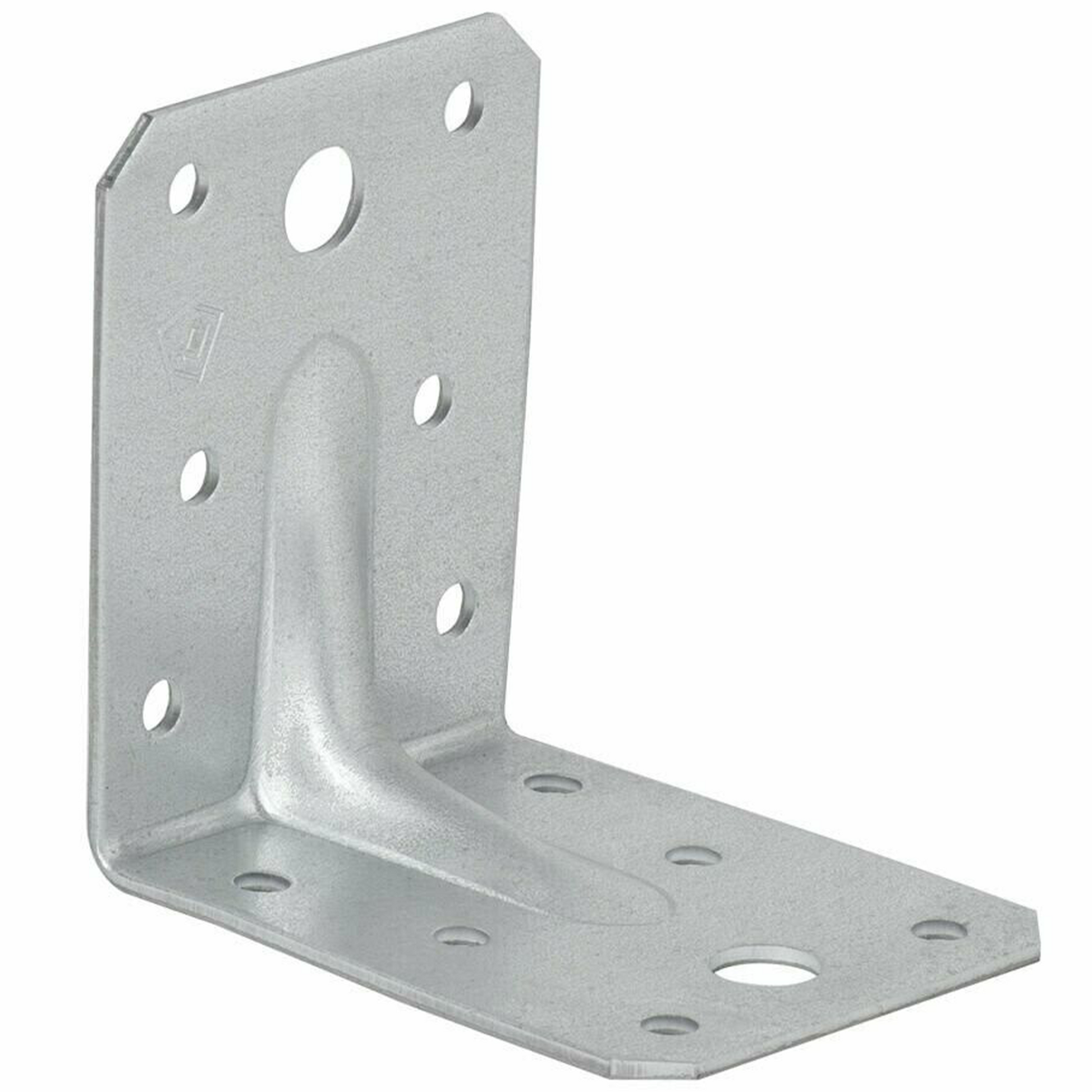

• KP4 (70x70x55mm): = 19.6 kN

FASTENER COMPATIBILITY AND INSTALLATION PROTOCOL

The precise hole configuration accommodates a professional range of fixings, ensuring the installer can match the fastener to the load demand:

• Small Holes (5mm): Ideal for 4mm ANCHOR nails or 5mm ANW - ANCHOR screws (Torx20 socket) for high withdrawal resistance and distributing the load across the joint surface.

• Medium/Large Holes (7mm, 11mm, 14mm): Designed for heavy-duty fixings, including wood screws (6mm, 10mm), structural bolts (M10, M12), and concrete anchors (M10, M12) for superior shear strength.

• Installation Best Practice: For critical connections subject to extreme forces (e.g., heavy retaining walls), brackets should be installed in opposing pairs (one on each face of the joint) to distribute the load effectively and maximise resistance to tension and compression forces, a method recognised in engineering documentation.

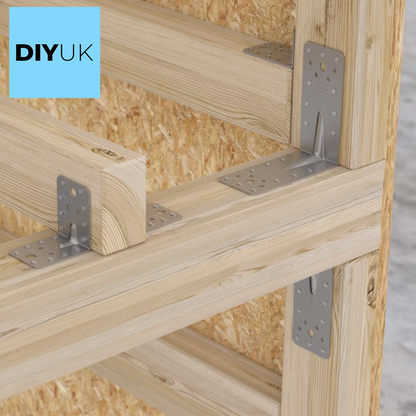

IDEAL HEAVY-DUTY APPLICATIONS:

• Joining Heavy Railway Sleepers (for Retaining Walls and Raised Beds)

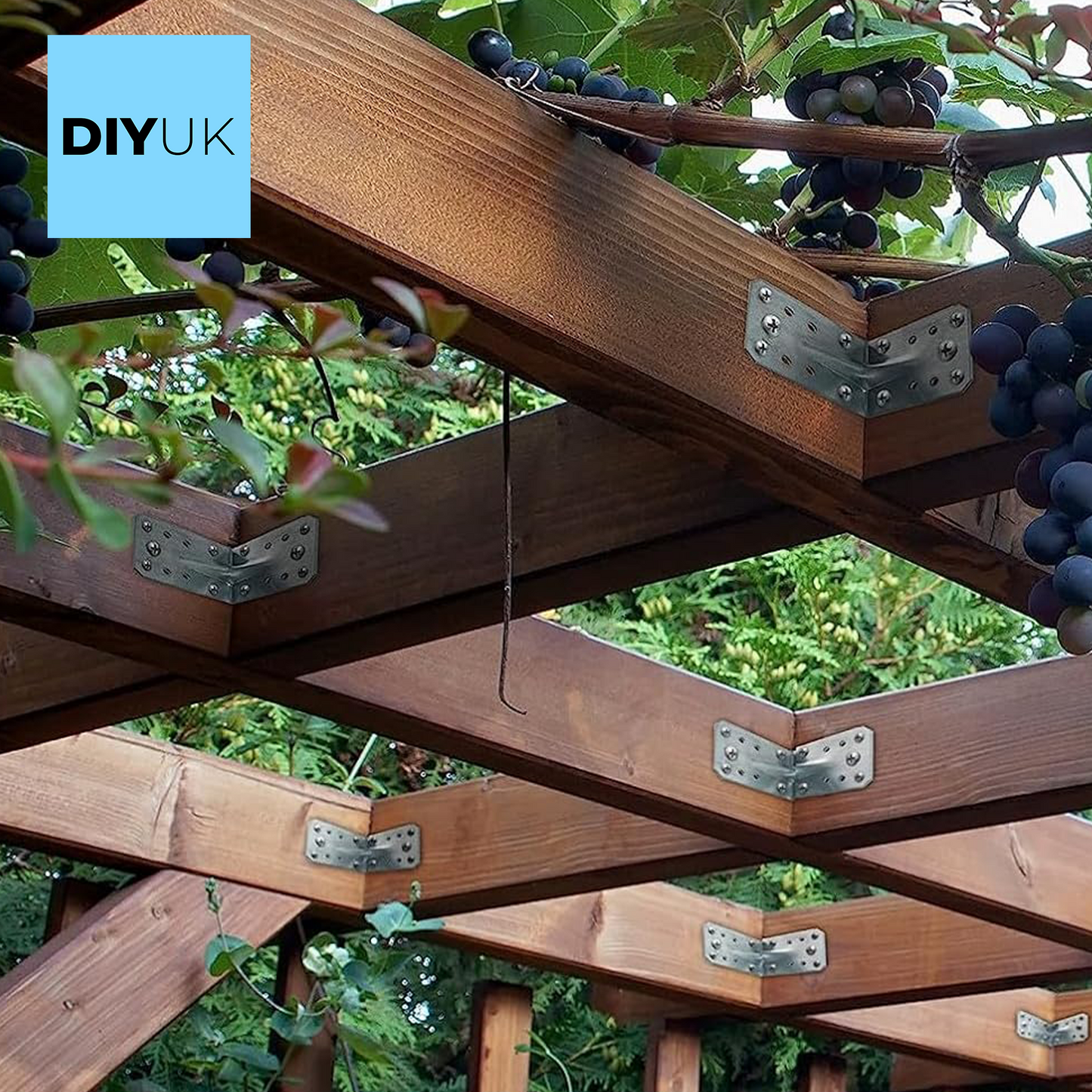

• Structural Pergola and Gazebo Construction

• Decking Frames and Joist-to-Beam Connections

• General Structural Framing and Roof Trusses

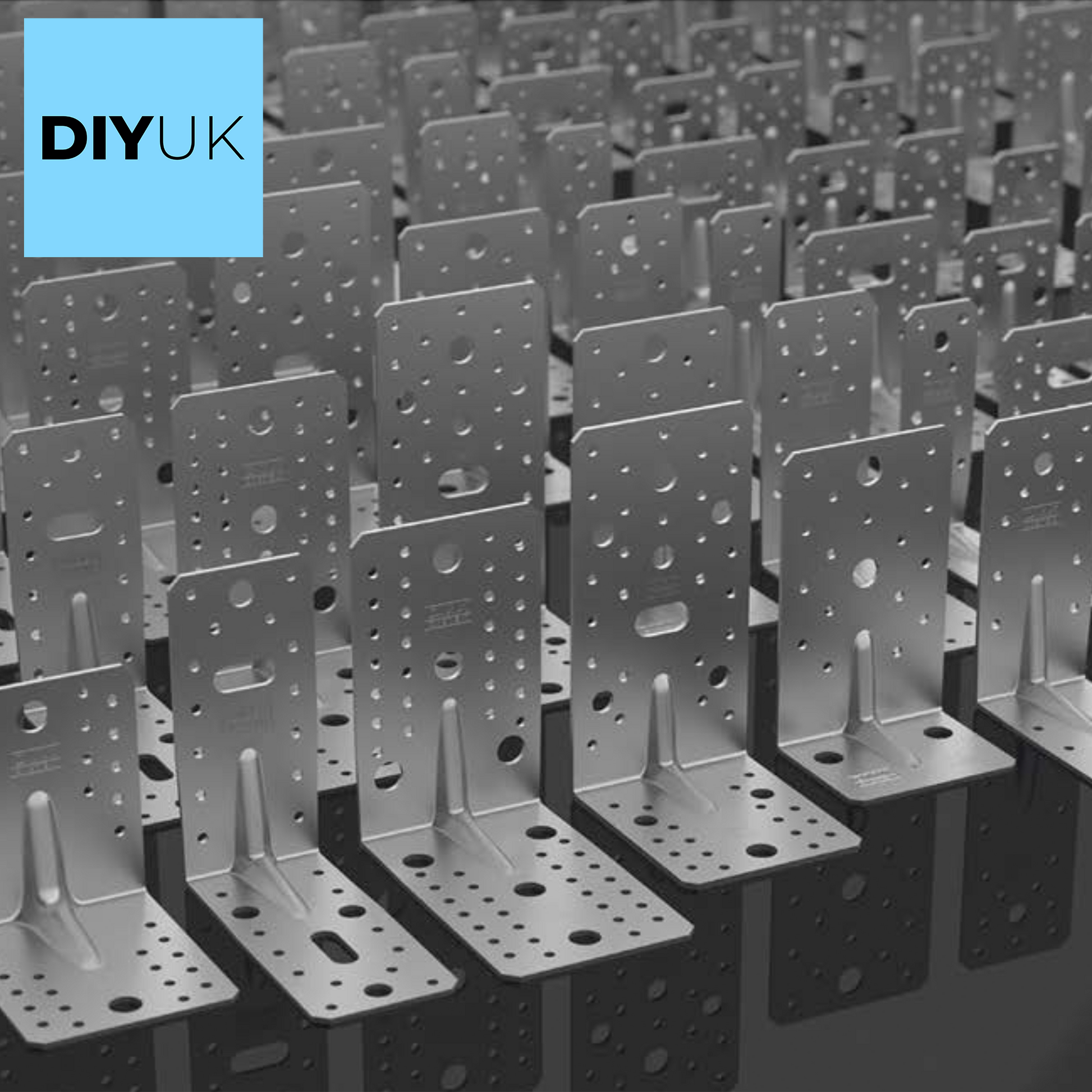

TRADE & BULK PACK ADVANTAGE

Available in versatile pack quantities ranging from 2 to 50 units. BUY MORE, SAVE MORE! Our trade pricing model ensures that large-volume users and professionals benefit from the lowest unit cost, streamlining procurement and maximising profitability.

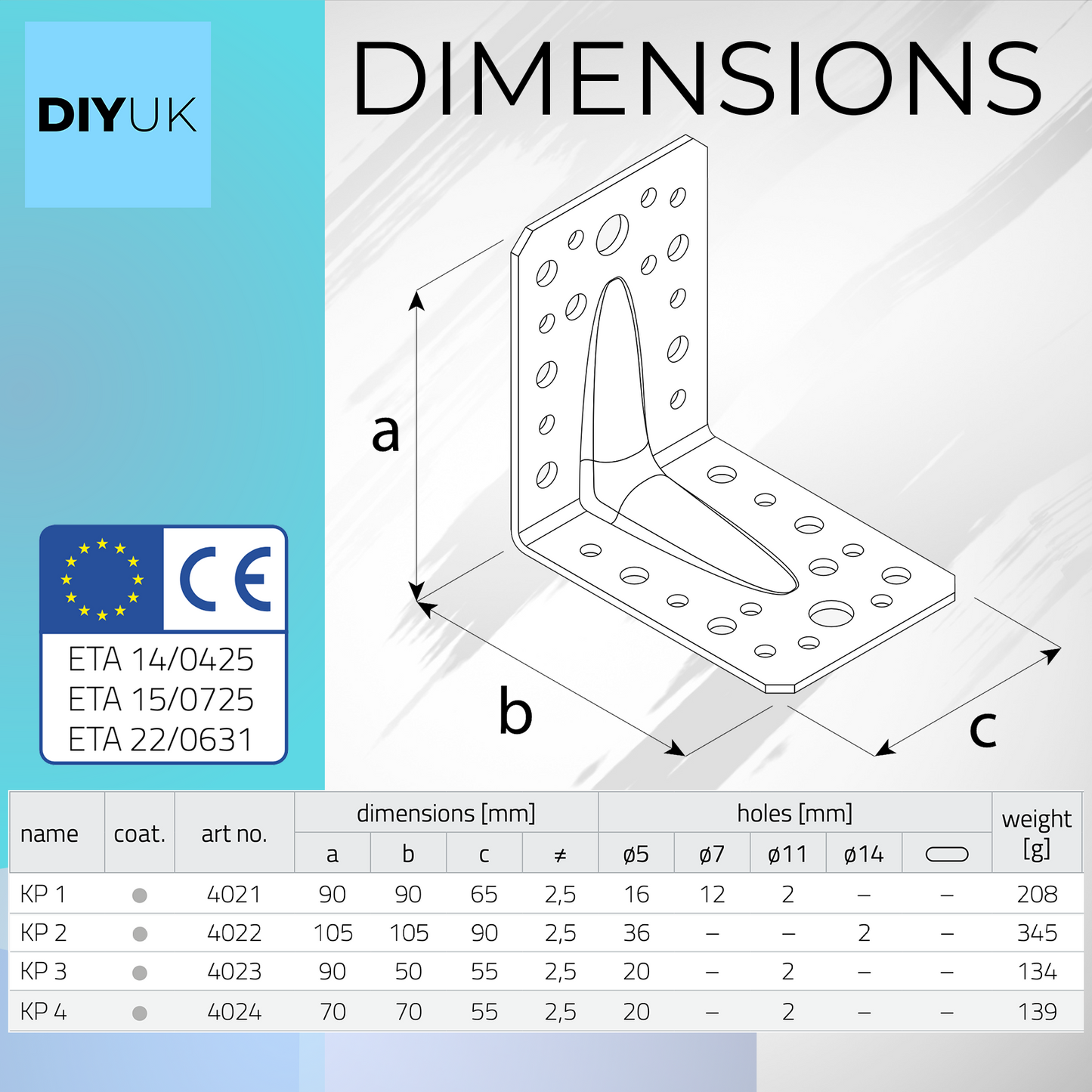

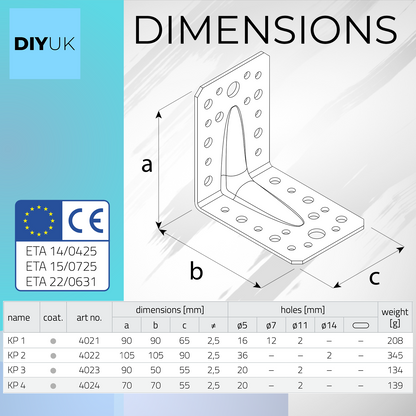

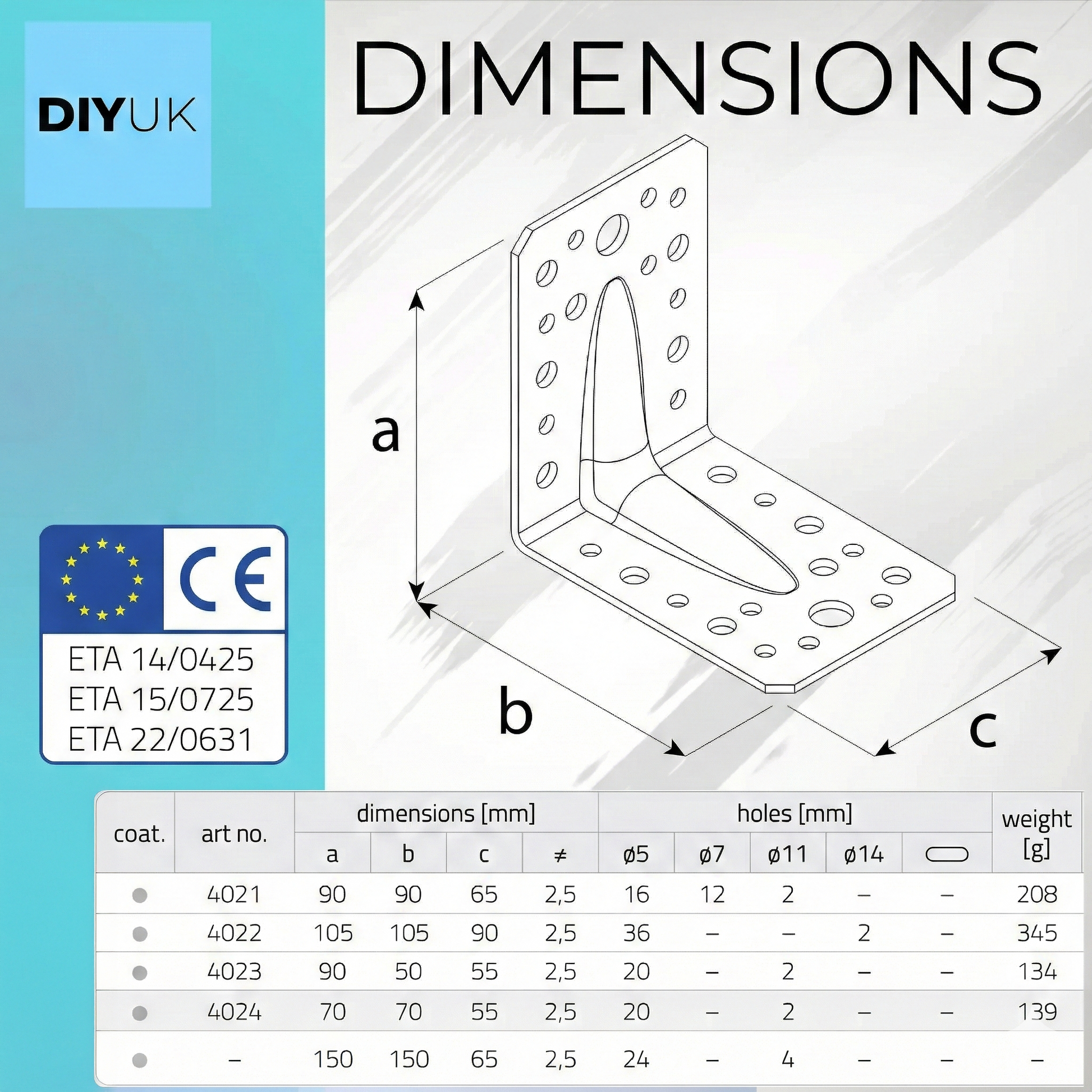

Technical Specifications Table

The following matrix consolidates the material, dimensional, and fastener data for the specific angle brackets.
